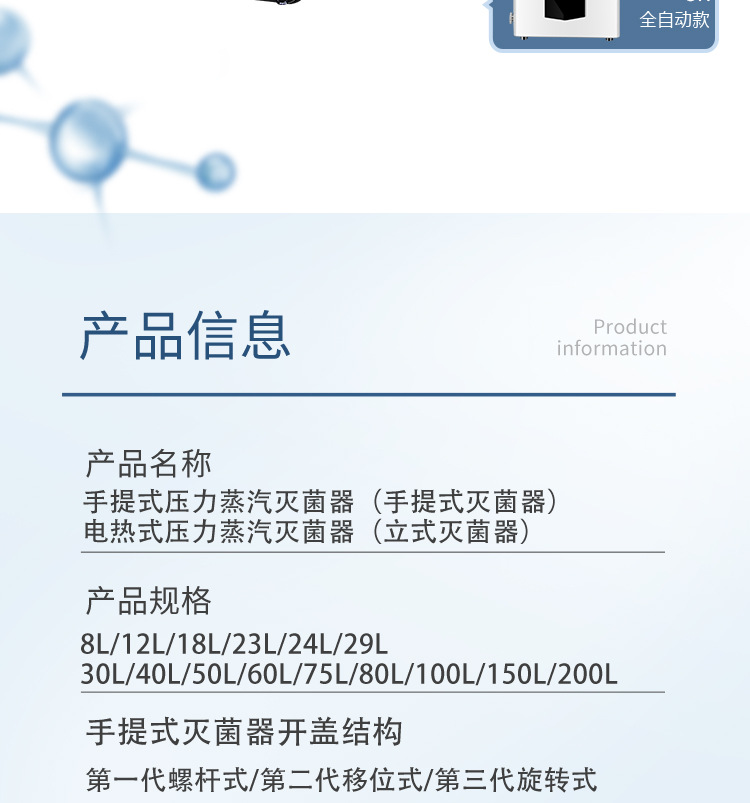

产品名称 | 手提式灭菌锅/立式灭菌器选型 |
---|---|
产地 | 浙江绍兴 |
品牌 | 中友/新丰 |
容量 | 8L,12L,18L,24L,29L,30L,40L,50L,75L,100L,150L,200L |
功能选型 | 自动定时、自动泄压、缺水停机、缺水报警、 |
手提式灭菌锅/立式灭菌器选型,浙江新丰/中友高温高压蒸汽灭菌锅选型表,实验室不锈钢手提式自动消毒锅灭菌器选型表,手提式灭菌锅,反压高温蒸煮锅

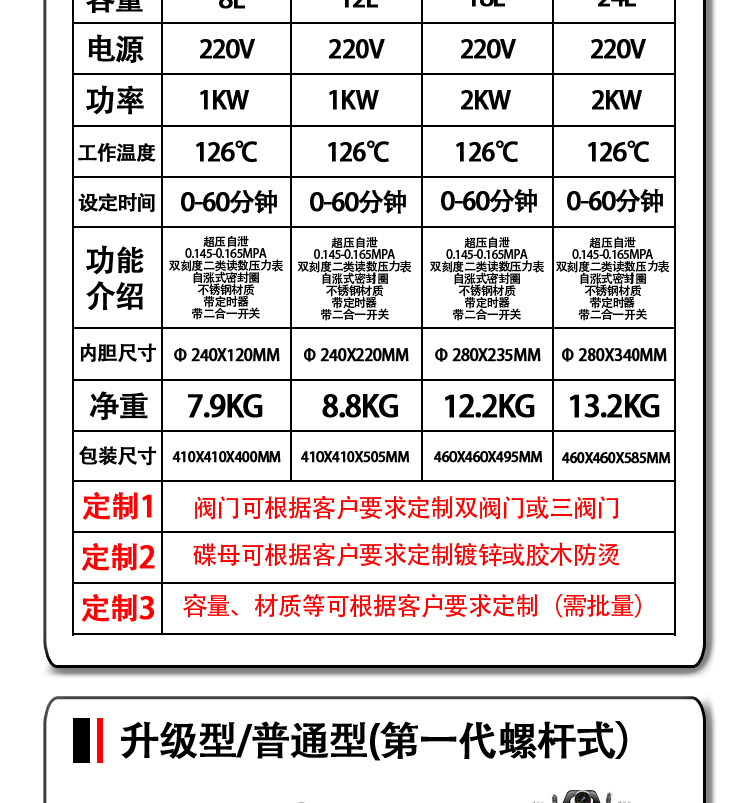

手提式灭菌锅(1) | ||||||
型号 | 容积 | 电源 | 功率 | 灭菌室尺寸 | 净重 | 包装尺寸 |

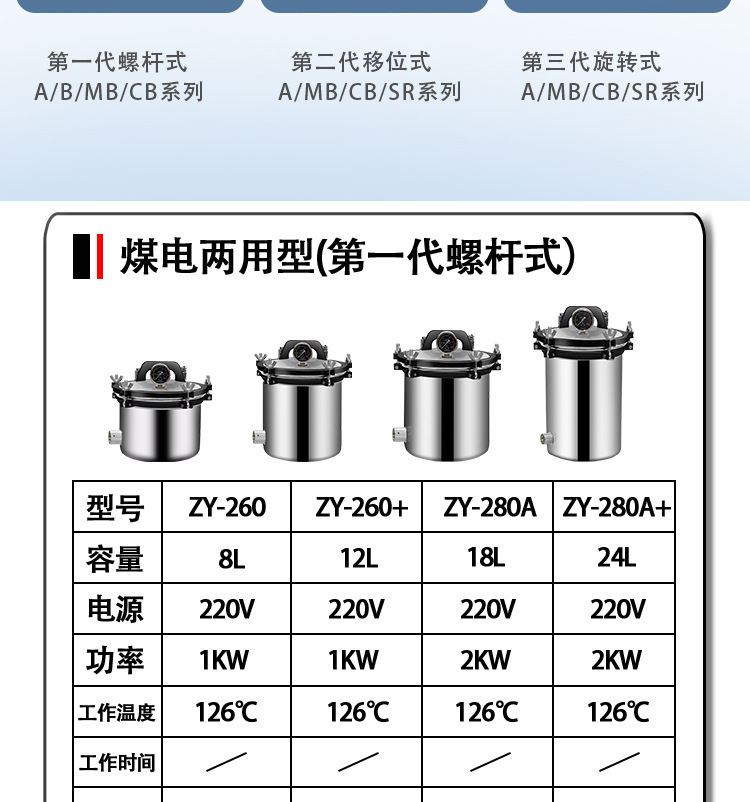

ZY-260 | 8L | 220V | 1KW | 240X120MM | 7KG | 360*360*300mm |
ZY-260+ | 12L | 220V | 1KW | 240X220MM | 7.7KG | 360*360*400mm |
ZY-260S | 8L | 220V | 1KW | 240X120MM | 7.9KG | 410*410*400mm |
ZY-260+ | 12L | 220V | 1KW | 240X220MM | 8.8KG | 410*410*505mm |
ZY-280A | 18L | 220V | 2KW | 280X235MM | 12KG | 400*400*450mm |
ZY-280A+ | 24L | 220V | 2KW | 280X340MM | 13KG | 400*400*550mm |
ZY-280AS | 18L | 220V | 2KW | 280X235MM | 12.2KG | 460*460*495mm |
ZY-280AS+ | 24L | 220V | 2KW | 280X340MM | 13.2KG | 460*460*585mm |

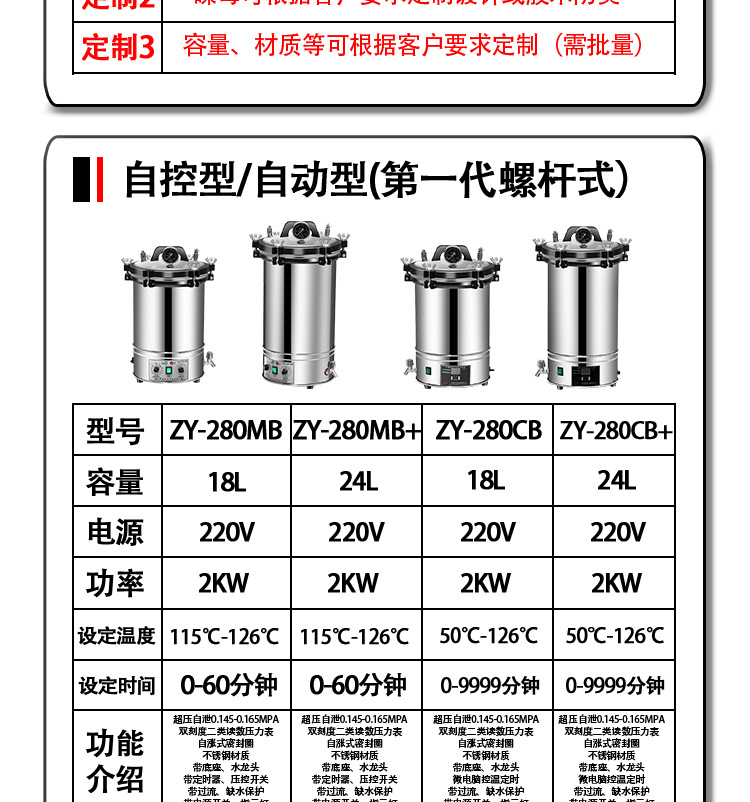

ZY-280MB | 18L | 220V | 2KW | 280X235MM | 13.5KG | 410*410*550mm |
ZY-280MB+ | 24L | 220V | 2KW | 280X340MM | 15.5KG | 425*425*660mm |
ZY-280CB | 18L | 220V | 2KW | 280X235MM | 14.5KG | 410*410*550mm |
ZY-280CB+ | 24L | 220V | 2KW | 280X340MM | 16.5KG | 425*425*660mm |

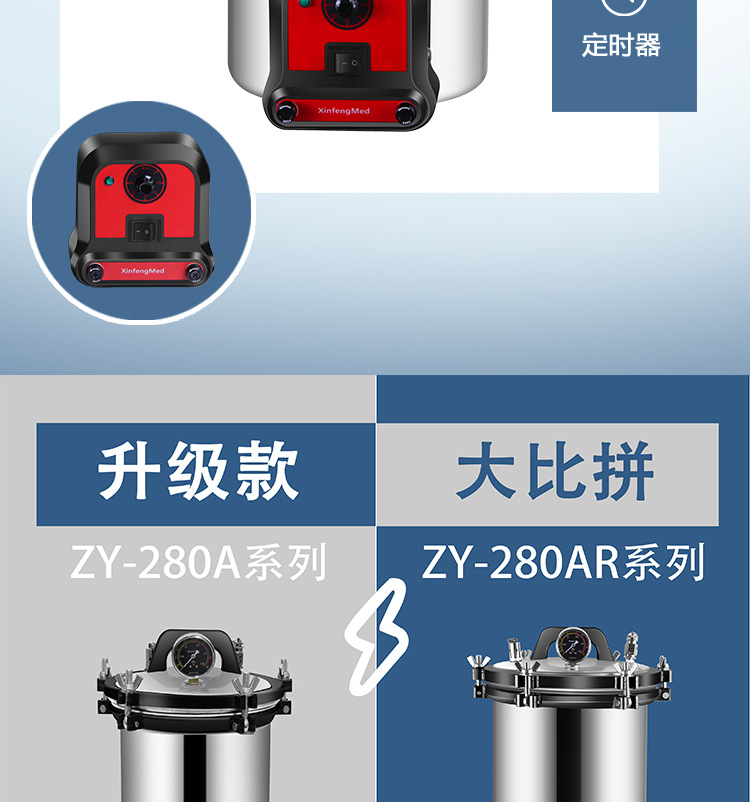

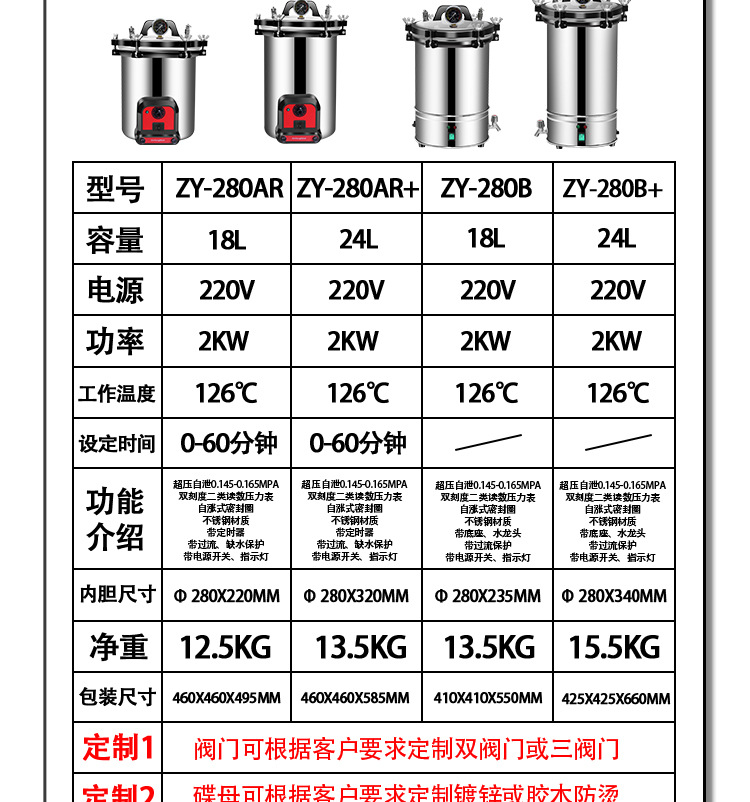

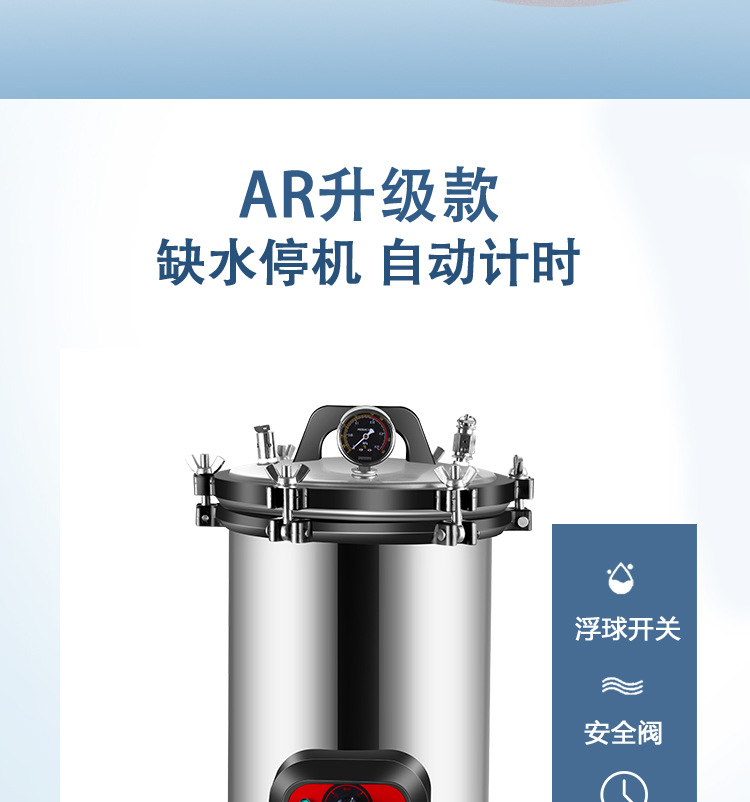

ZY-280AR | 18L | 220V | 2KW | φ280X215MM | 13.5KG | 460X460X495MM |
ZY-280AR+ | 24L | 220V | 2KW | φ280X320MM | 14.5KG | 460X460X585MM |
手提式灭菌锅(2) | ||||||

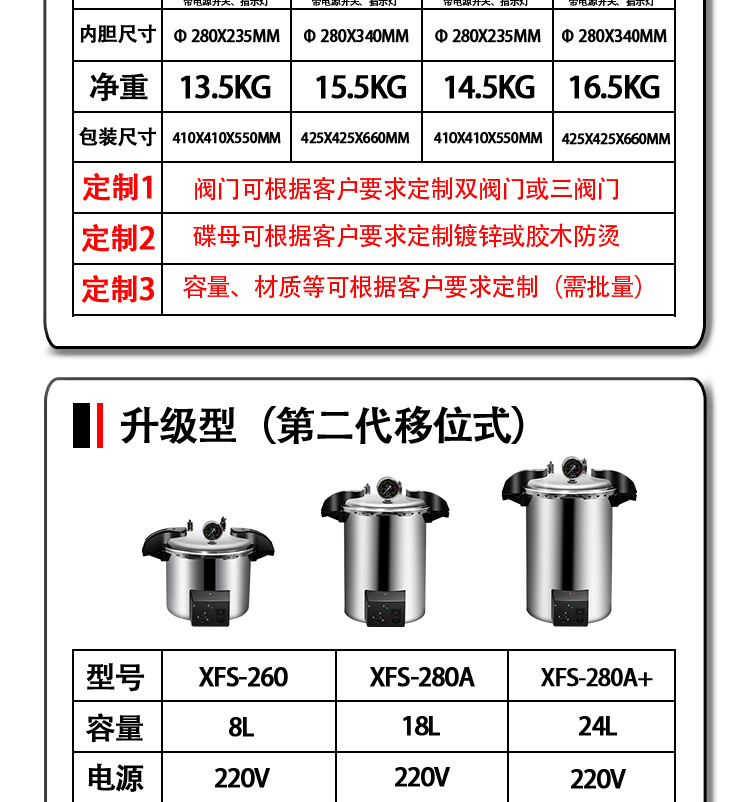

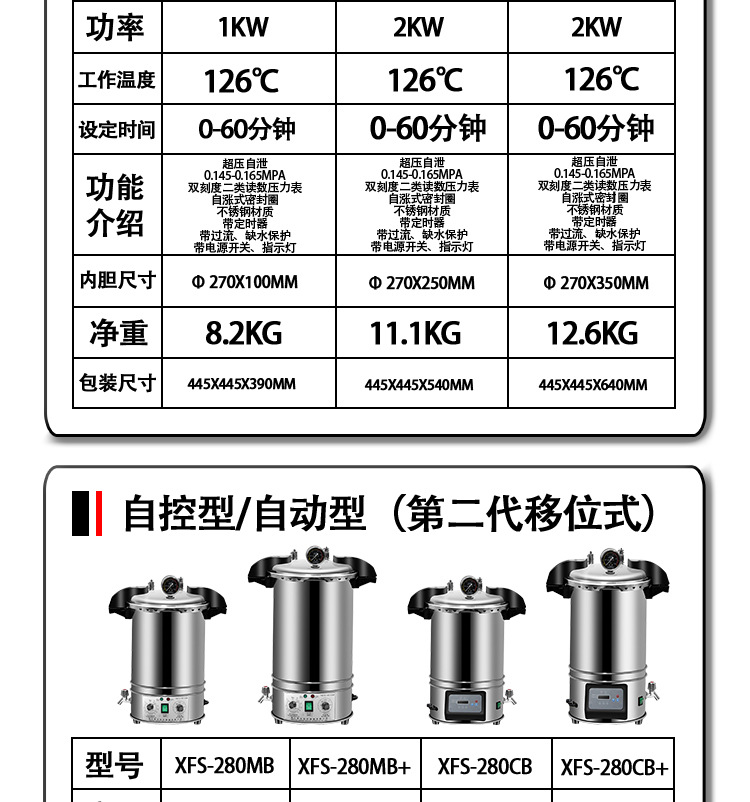

XFS-260 | 8L | 220V | 1KW | 270X100MM | 8.2KG | 445*445*390mm |
XFS-280A | 18L | 220V | 2KW | 270X250MM | 11.1KG | 445*445*540mm |
XFS-280A+ | 24L | 220V | 2KW | 270X350MM | 12.6KG | 445*445*640mm |

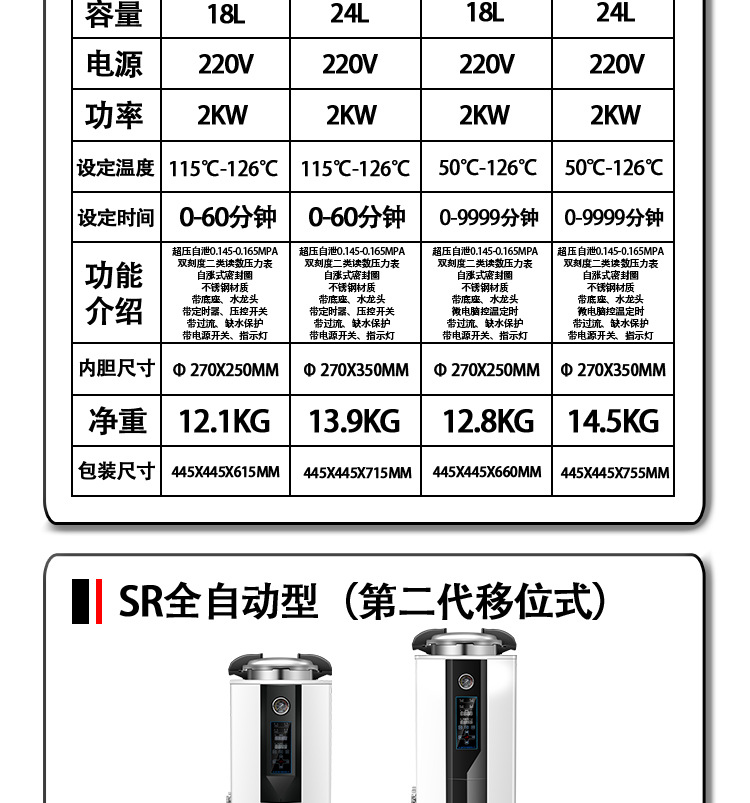

XFS-280MB | 18L | 220V | 2KW | 270X250MM | 12.1KG | 445*445*615mm |
XFS-280MB+ | 24L | 220V | 2KW | 270X350MM | 13.9KG | 445*445*715mm |
XFS-280CB | 18L | 220V | 2KW | 270X250MM | 12.8KG | 445*445*660mm |
XFS-280CB+ | 24L | 220V | 2KW | 270X350MM | 14.5KG | 445*445*755mm |
手提式灭菌锅(3) | ||||||

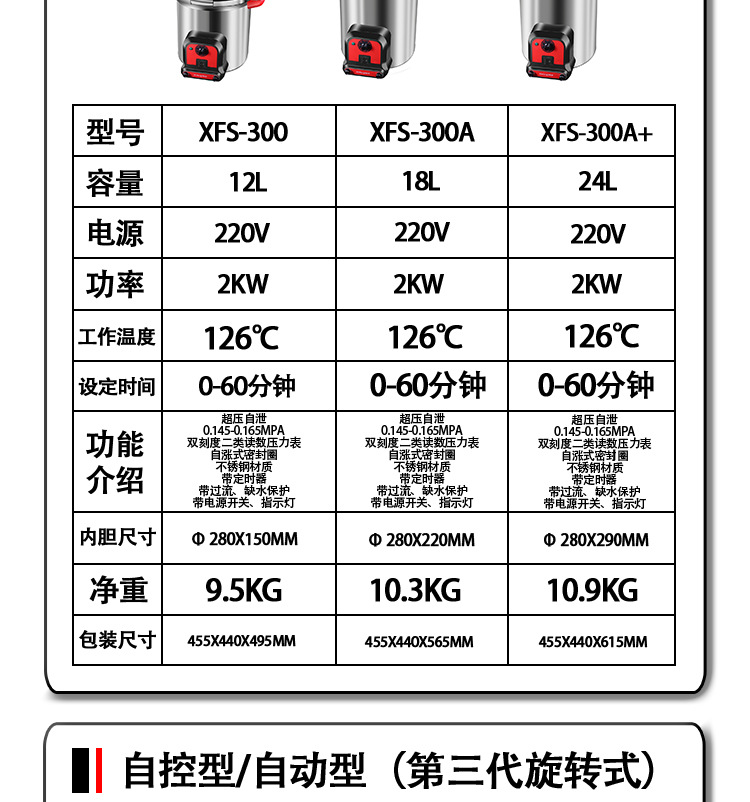

XFS-300 | 12L | 220V | 2KW | φ280X150MM | 9.5KG | 455X440X495MM |
XFS-300A | 18L | 220V | 2KW | φ280X220MM | 10.3KG | 455X440X565MM |
XFS-300A+ | 24L | 220V | 2KW | φ280X290MM | 10.9KG | 455X440X615MM |

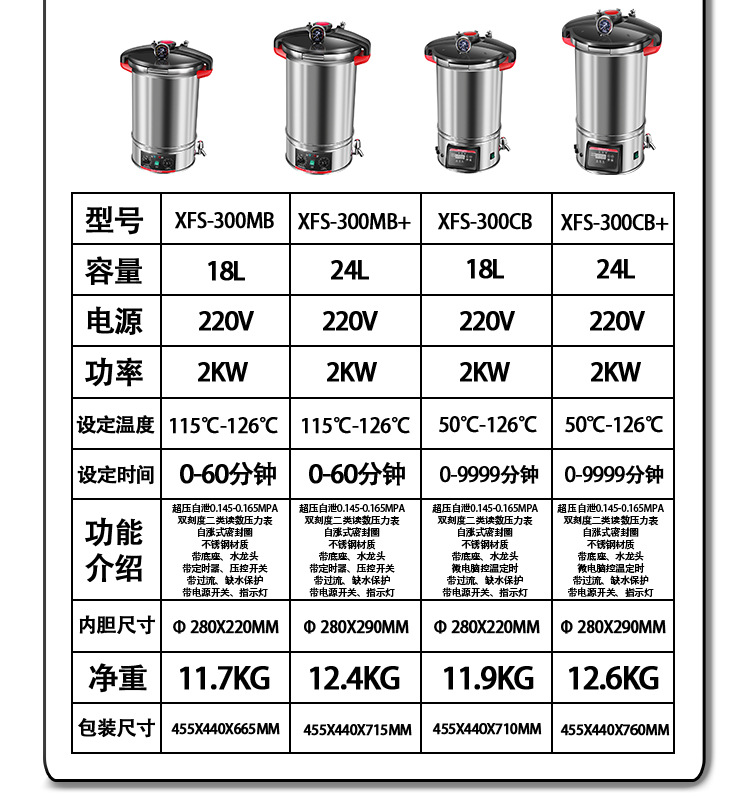

XFS-300MB | 18L | 220V | 2KW | φ280X220MM | 11.7KG | 455X440X665MM |
XFS-300MB+ | 24L | 220V | 2KW | φ280X290MM | 12.4KG | 455X440X715MM |
XFS-300CB | 18L | 220V | 2KW | φ280X220MM | 11.9KG | 455X440X710MM |
XFS-300CB+ | 24L | 220V | 2KW | φ280X290MM | 12.6KG | 455X440X760MM |
手提式灭菌锅(2)SR | ||||||

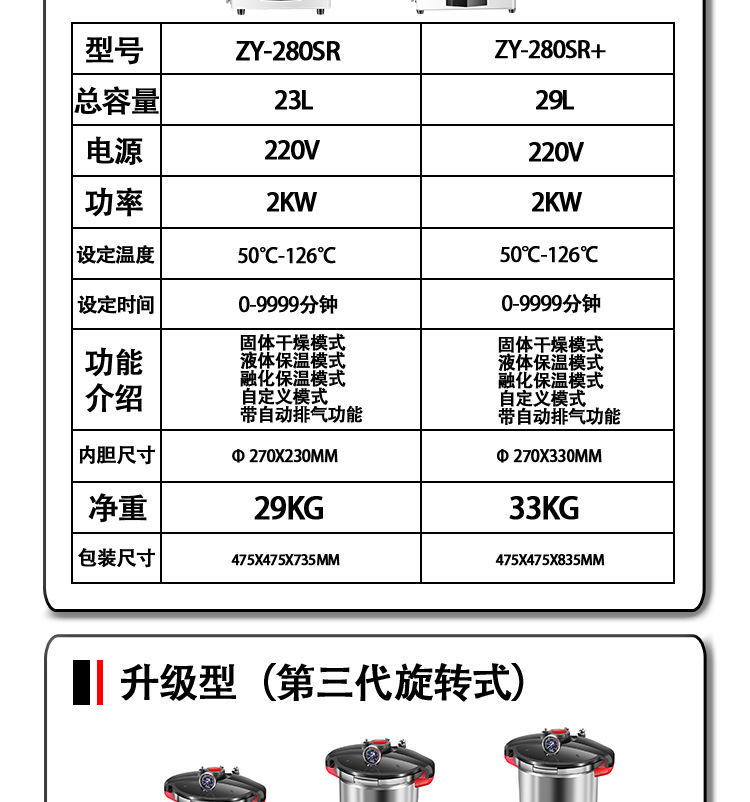

ZY-280SR | 23L | 220V | 2KW | φ270X230MM | 29KG | 475X475X735MM |
ZY-280SR+ | 29L | 220V | 2KW | φ270X230MM | 33KG | 475X475X835MM |
手提式灭菌锅(3)SR | ||||||

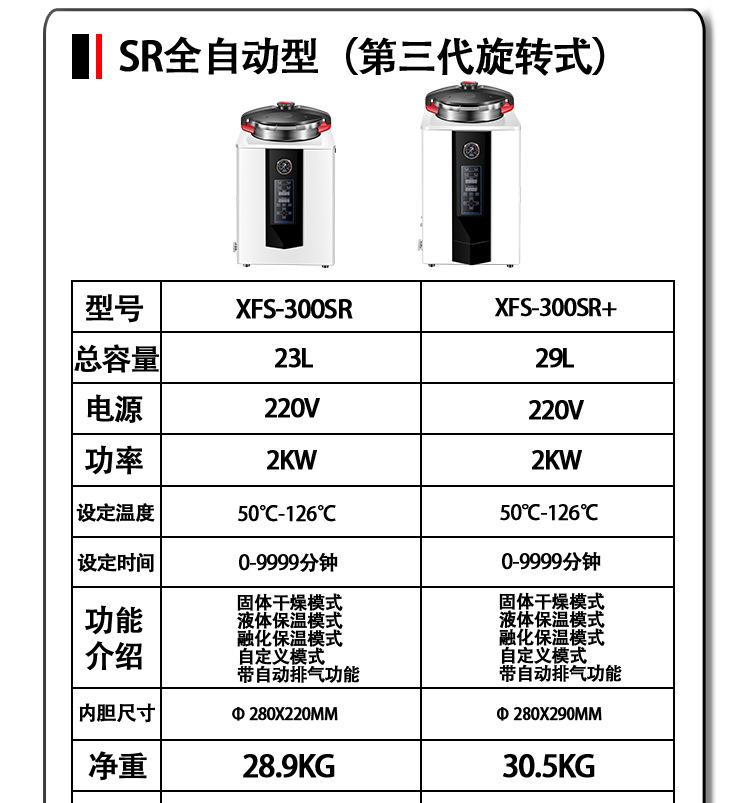

XFS-300SR | 23L | 220V | 2KW | φ280X220MM | 28.9KG | 495X495X805MM |
XFS-300SR+ | 29L | 220V | 2KW | φ280X290MM | 30.5KG | 495X495X845MM |

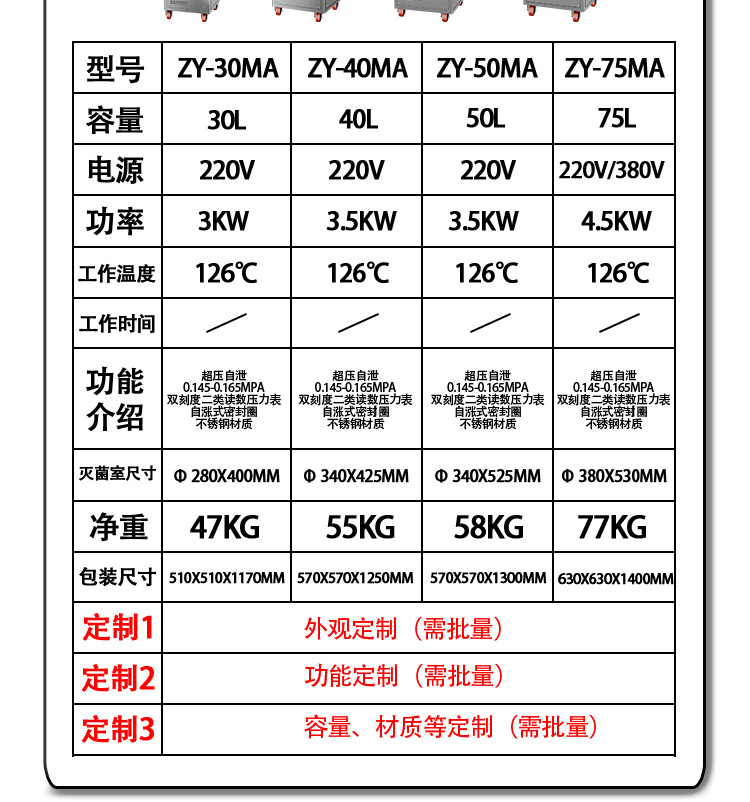

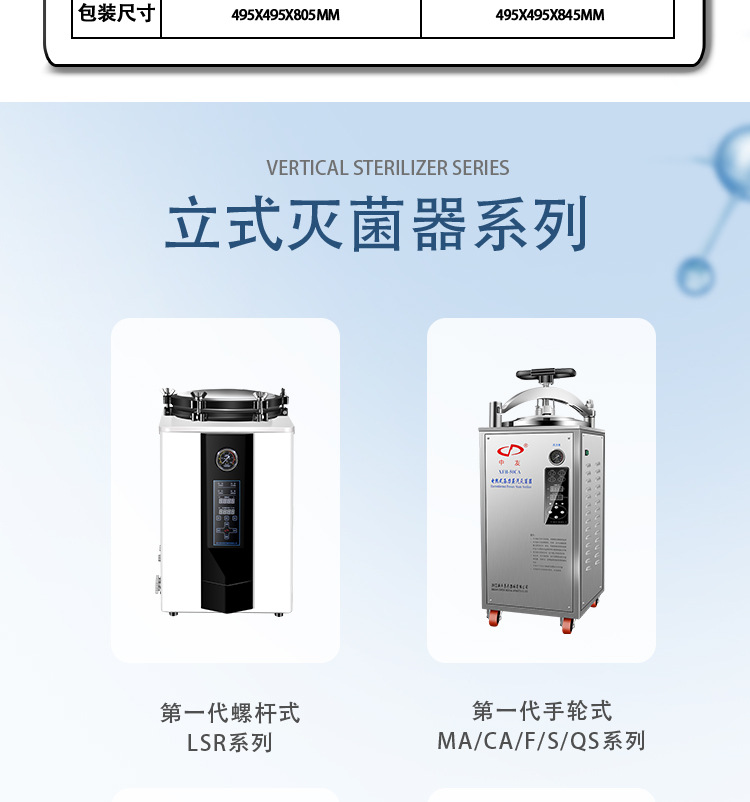

立式灭菌锅(1) | ||||||
ZY-30MA | 30L | 220V | 3.0KW | φ280*400MM | 47KG | 510*510*1170MM |
XFH-30CA | 30L | 220V | 3.0KW | φ280*400MM | 47KG | 510*510*1170MM |
ZY-40MA | 40L | 220V | 3.5KW | φ340*425MM | 55KG | 570*570*1250MM |
XFH-40CA | 40L | 220V | 3.5KW | φ340*425MM | 55KG | 570*570*1250MM |
ZY-50MA | 50L | 220V | 3.5KW | φ340*525MM | 58KG | 570*570*1300MM |
XFH-50CA | 50L | 220V | 3.5KW | φ340*525MM | 58KG | 570*570*1300MM |
ZY-75MA | 75L | 380V | 4.5KW | φ380*530MM | 77KG | 630*630*1400MM |
XFH-75CA | 75L | 380V | 4.5KW | φ380*530MM | 77KG | 630*630*1400MM |

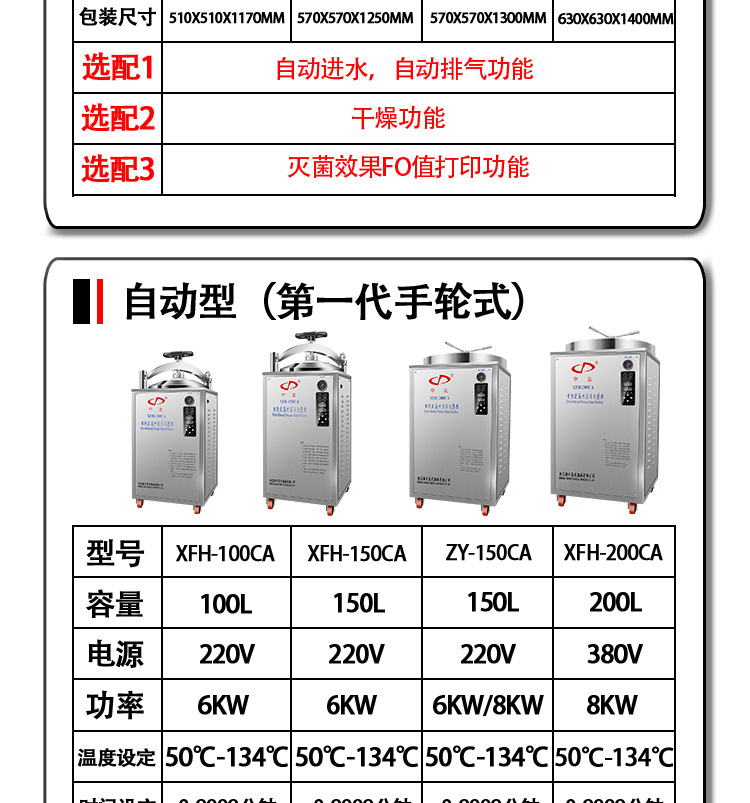

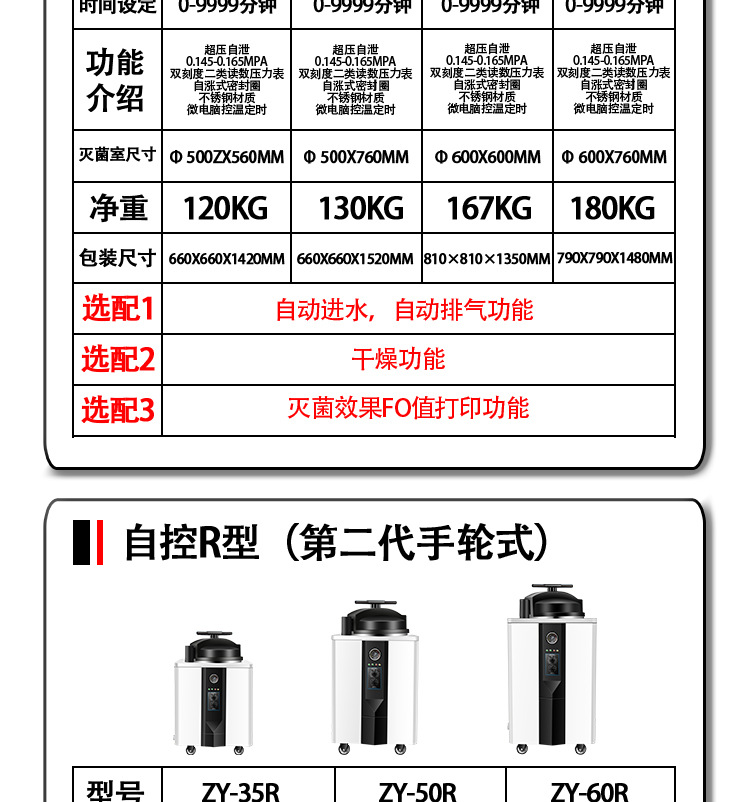

XFH-100CA | 100L | 380V | 6.0KW | φ500*560MM | 120KG | 660*660*1420MM |
XFH-150CA | 150L | 380V | 6.0KW | φ500*760MM | 130KG | 660*660*1220MM |
XFH-200CA | 200L | 380V | 8.0KW | φ600*760MM | 180KG | 790*790*1480MM |
立式灭菌锅(2)SR | ||||||

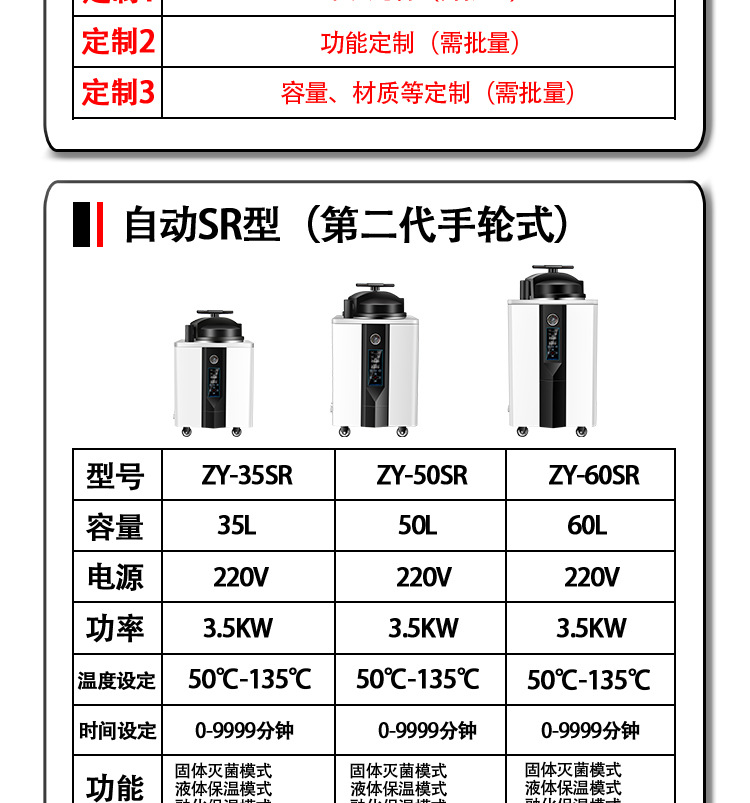

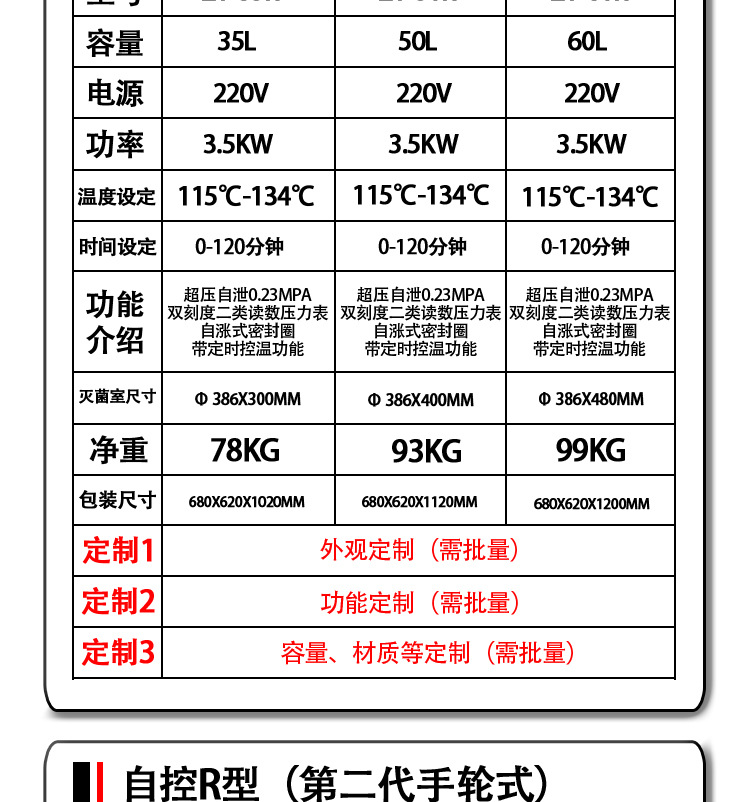

ZY-35SR | 220V | 3.5KW | Φ386X300MM | Φ340X280MM 1个 | 78KG | 680X620X1020MM |
ZY-50SR | 220V | 3.5KW | Φ386X400MM | Φ340X190MM 2个 | 83KG | 680X620X1120MM |
ZY-60SR | 220V | 3.5KW | Φ386X480MM | Φ340X190MM 1个 Φ340X280MM 1个 | 88KG | 680X620X1200MM |

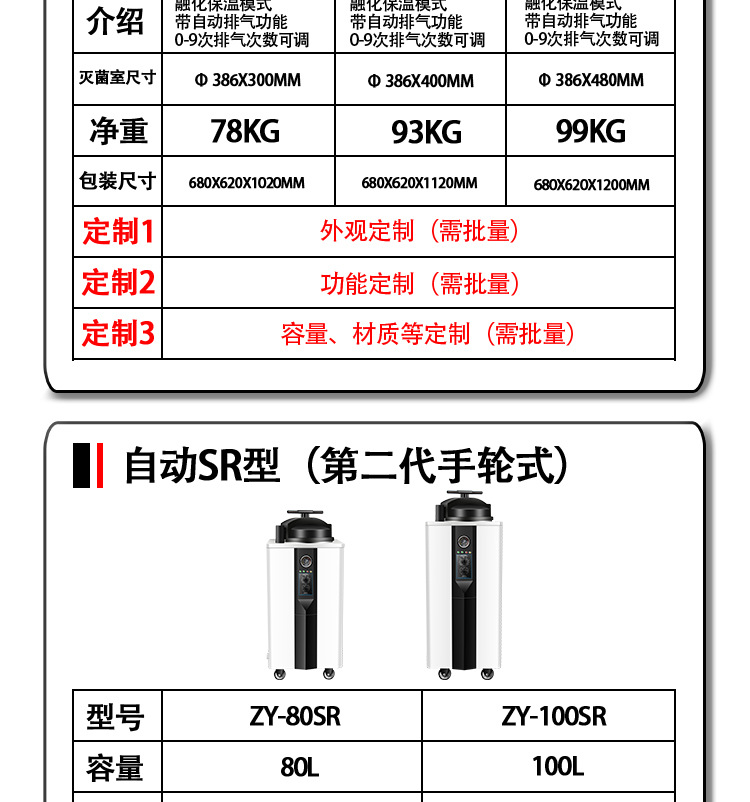

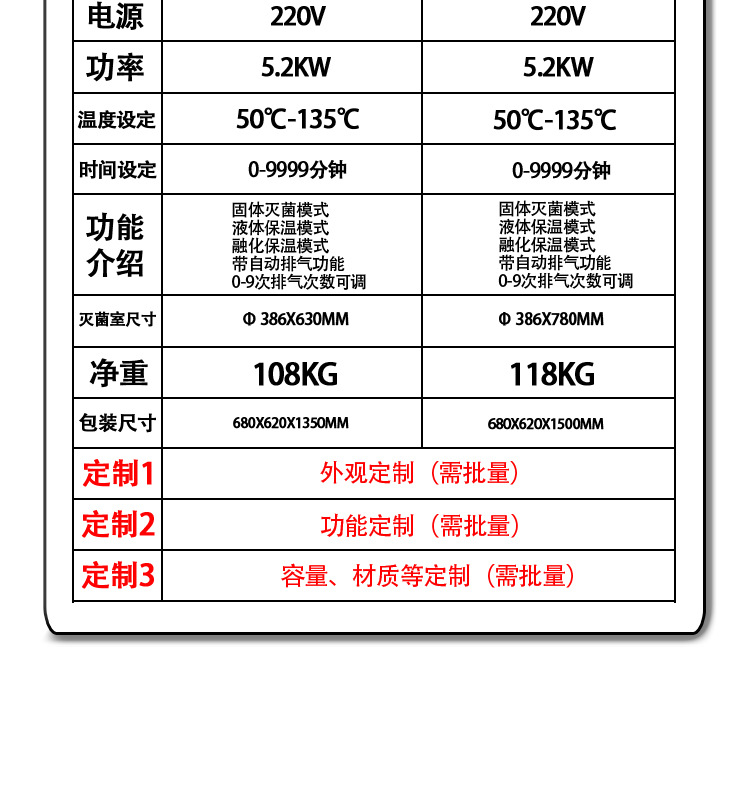

ZY-80SR | 220V | 5.2KW | Φ386X630MM | Φ340X280MM 1个 Φ340X330MM 1个 | 95KG | 680X620X1350MM |
ZY-100SR | 220V | 5.2KW | Φ386X780MM | Φ340X280MM 2个 Φ340X190MM 1个 | 103KG | 680X620X1500MM |
反压高温蒸煮锅 | ||||||
ZY-50F | 220V | 3.5KW | φ320X450MM | φ350X650MM | 58KG | 570X570X1300MM |
ZY-100F | 380V | 6.0KW | φ470X240MM 2个 | φ510X740MM | 120KG | 660X660X1420MM |
ZY-100F | 380V | 6.0KW | φ470X240MM 2个 | φ510X740MM | 120KG | 660X660X1420MM |
ZY-150F | 380V | 6.0KW | φ470X240MM 3个 | φ510X920MM | 130KG | 660X660X1520MM |
ZY-150F | 380V | 6.0KW | φ470X240MM 3个 | φ510X920MM | 130KG | 660X660X1520MM |
ZY-50S | 220V | 3.5KW | φ320X450MM | φ350X650MM | 58KG | 570X570X1300MM |
ZY-100S | 380V | 6.0KW | φ470X240MM 2个 | φ510X740MM | 120KG | 660X660X1420MM |
ZY-150S | 380V | 6.0KW | φ470X240MM 3个 | φ510X920MM | 130KG | 660X660X1520MM |
超压自泄0.145-0.165Mpa
◆ 最高工作温度126℃-128℃
◆ 双刻度二类读数压力表
◆ 自胀式密封
◆ 全不锈钢材料
◆ 煤电两用加热方式
(XFS-260)移位式8L普通型 符合新国标
(XFS-280A)移位式18L普通型 符合新国标
(XFS-280A+)移位式24L普通型 符合新国标
(ZY-260)8L加厚不锈钢防干烧 双阀
(ZY-260)8L加厚不锈钢防干烧 三阀

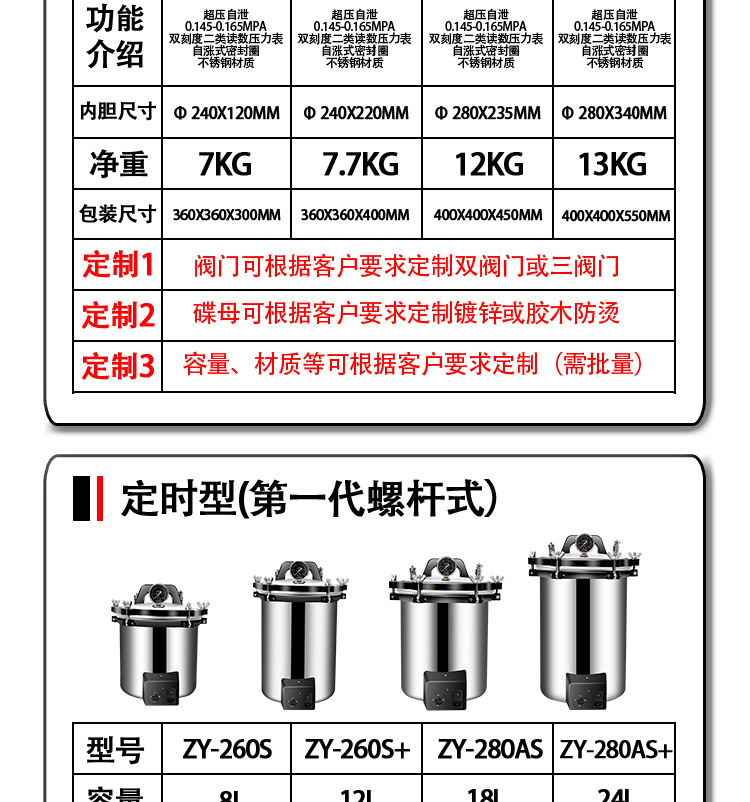

(ZY-260S)8L定时自动停机 二阀
(ZY-260S)8L定时自动停机 三阀
(ZY-260+)12L加厚不锈钢防干烧 双阀
(ZY-260+)12L加厚不锈钢防干烧 三阀
(ZY-260S+)12L定时自动停机 二阀
(ZY-260S+)12L定时自动停机 三阀
(ZY-280A)18L加厚不锈钢防干烧 双阀
(ZY-280A)18L加厚不锈钢防干烧 双阀
(ZY-280A)18L加厚不锈钢防干烧 三阀
(ZY-280AS)18L定时自动停机 二阀
(ZY-280AS)18L定时自动停机 三阀
(ZY-280A+)24L加厚不锈钢防干烧 双阀
(ZY-280A+)24L加厚不锈钢防干烧 三阀
(ZY-280AS+)24L定时自动停机 二阀
(ZY-280AS+)24L定时自动停机 三阀
(ZY-280MB)18L加厚不锈钢缺水停机 自控 二阀
(ZY-280MB)18L加厚不锈钢缺水停机 自控 三阀
(ZY-280MB+)24L加厚不锈钢缺水停机 自控 二阀
(ZY-280MB+)24L加厚不锈钢缺水停机 自控 三阀
(ZY-280CB)18L加厚不锈钢缺水停机 自动 二阀
(ZY-280CB)18L加厚不锈钢缺水停机 自动 三阀
(ZY-280CB+)24L加厚不锈钢缺水停机 自动 二阀
(ZY-280CB+)24L加厚不锈钢缺水停机 自动 三阀
(XFS-280MB)移位式18L自控型 符合新国标
(XFS-280MB+)移位式24L自控型 符合新国标
(XFS-280CB)移位式18L自动型 符合新国标
(XFS-280CB+)移位式24L自动型 符合新国标

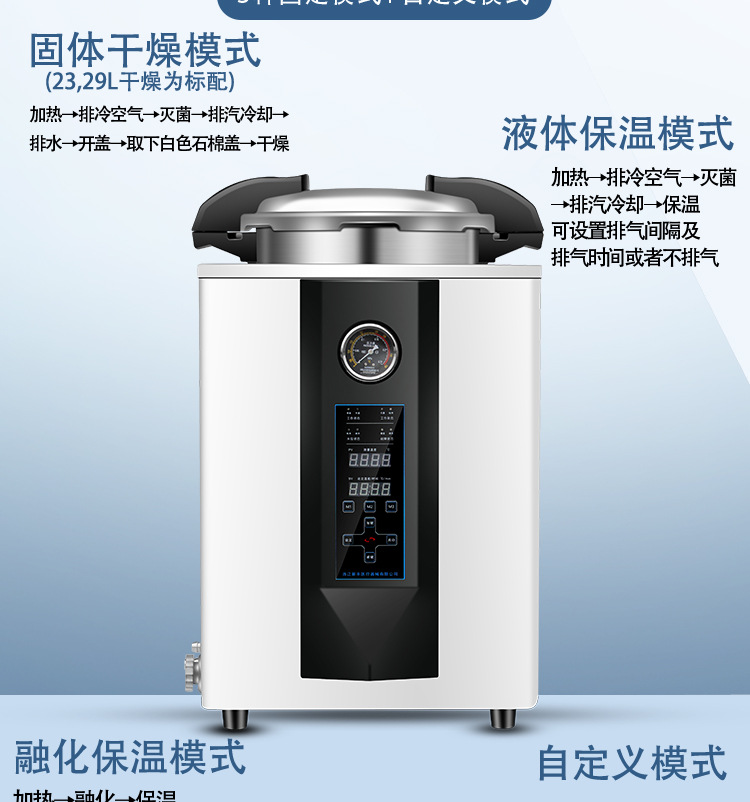

(ZY-280SR)移位式23L全自动型
(ZY-280SR+)移位式29L全自动型

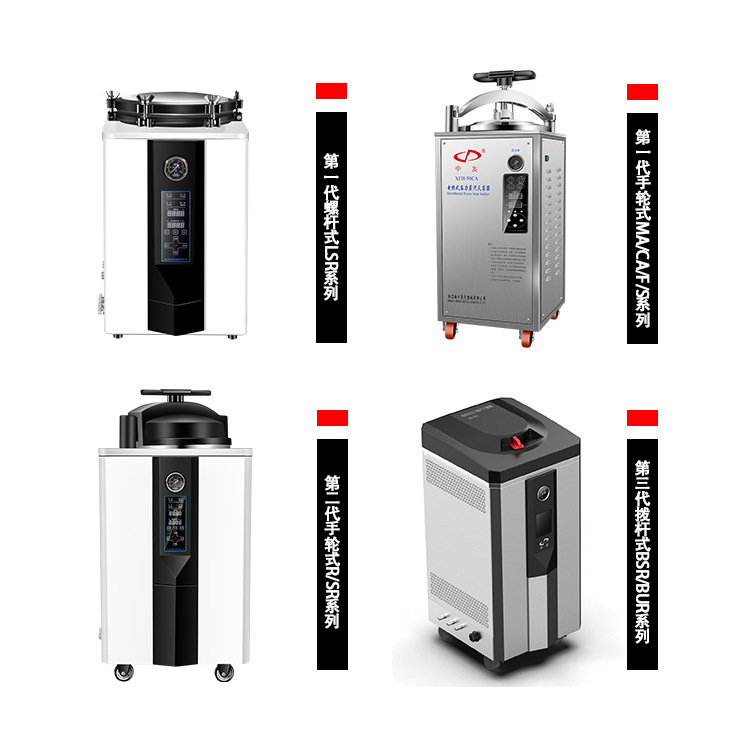

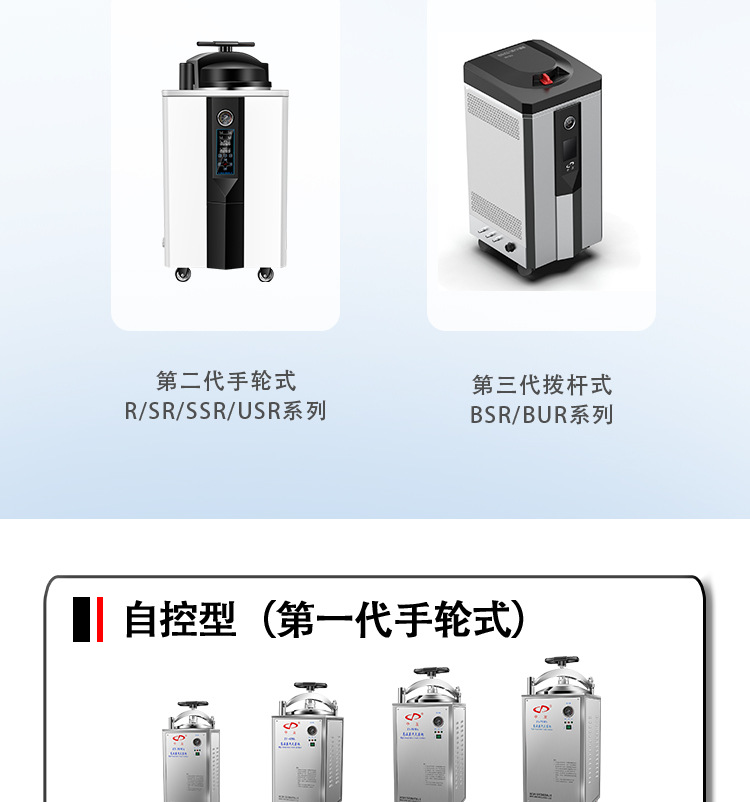

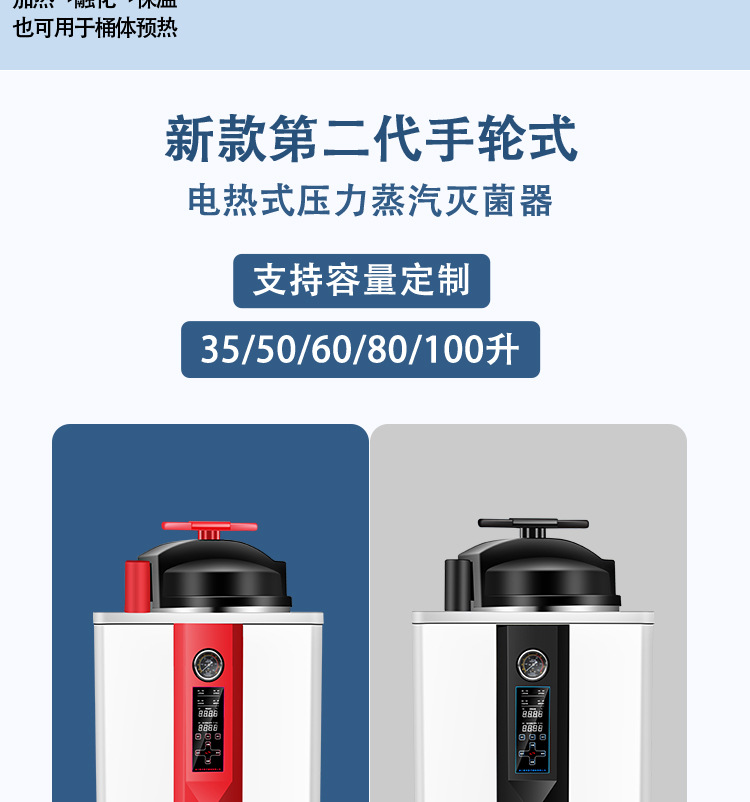

(ZY-35R)新立式35L自控R型
(ZY-50R)新立式50L自控R型
(ZY-60R)新立式60L自控R型

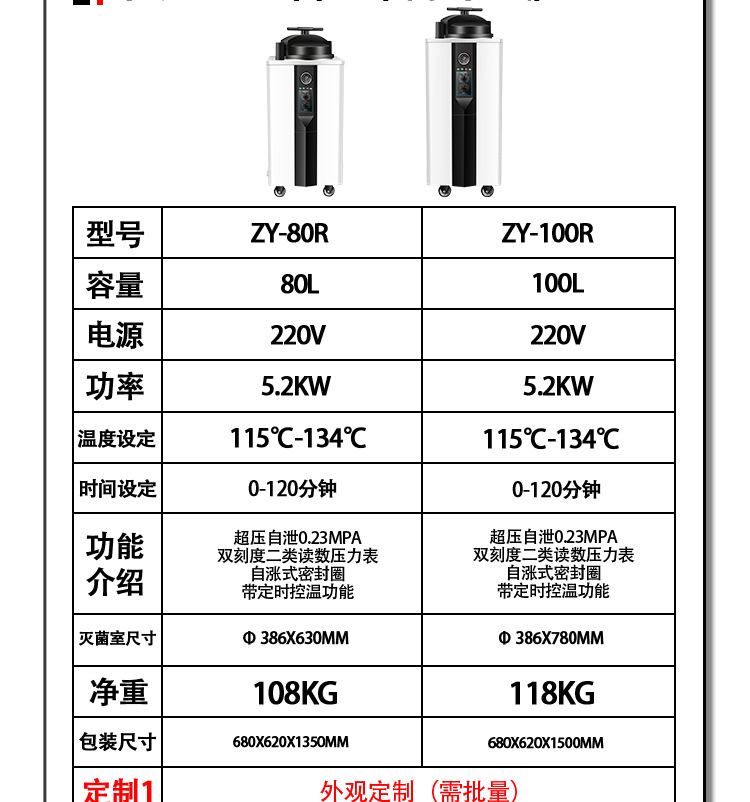

(ZY-80R)新立式80L自控R型
(ZY-100R)新立式100L自控R型
(ZY-35SR)新立式35L全自动SR型
(ZY-50SR)新立式50L全自动SR型
(ZY-60SR)新立式60L全自动SR型
(ZY-80SR)新立式80L全自动SR型
(ZY-100SR)新立式100L全自动SR型
